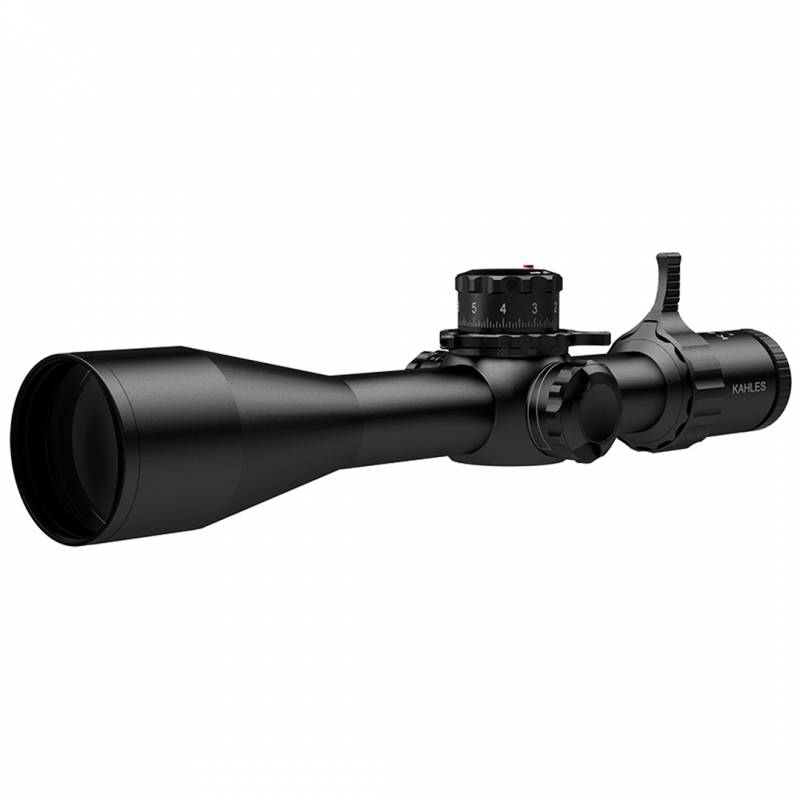

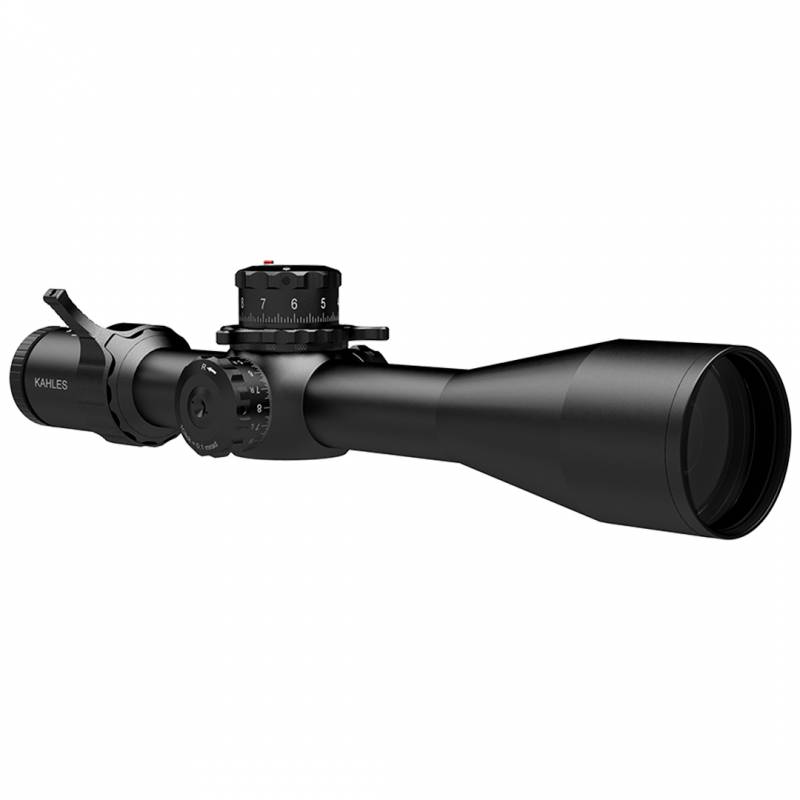

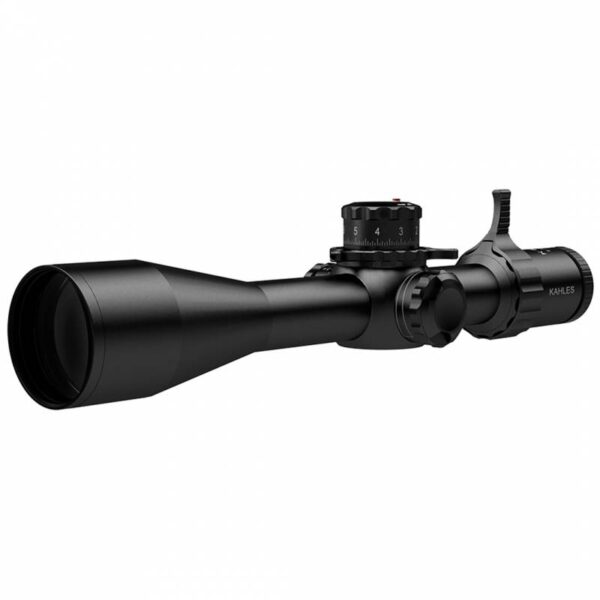

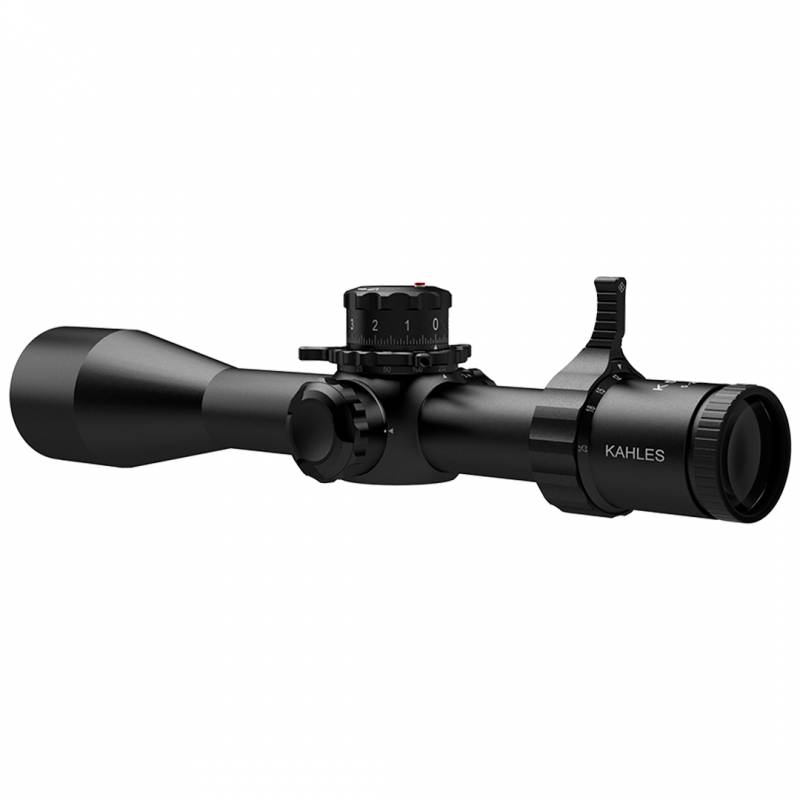

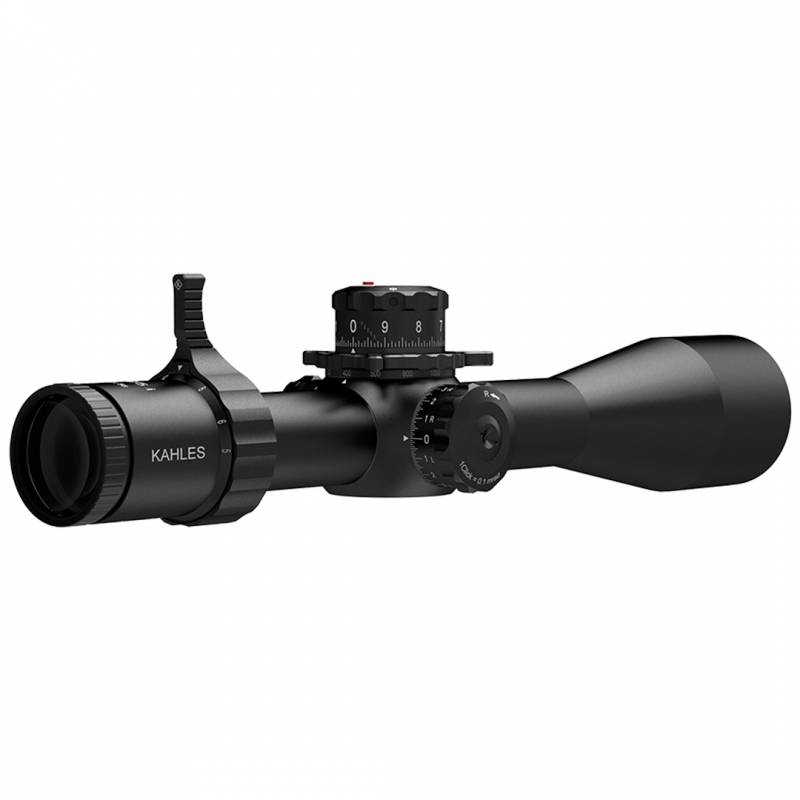

KAHLES K525i DLR 5-25×56 SKMR4

£2,999.00

The K525i combines maximum optical performance and precision with unique handling and ergonomics. The DLR variant is optimised for the fast action nature of Dynamic Long Range competitions. It features extended field of view, easy to read clicks, extralong throw lever and parallax spinner.

Please note this product is a ‘to order’ item and is ordered directly from Kahles with your preferred windage dial option, please contact us for the most accurate lead times.

Clear
SKU: N/A Categories: ,

Description

  • Maximum optical performance with extra wide field of view
  • 100 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks
  • Extra-large turret lettering for easy and fast reading
  • Optional left or right TWIST GUARD windage

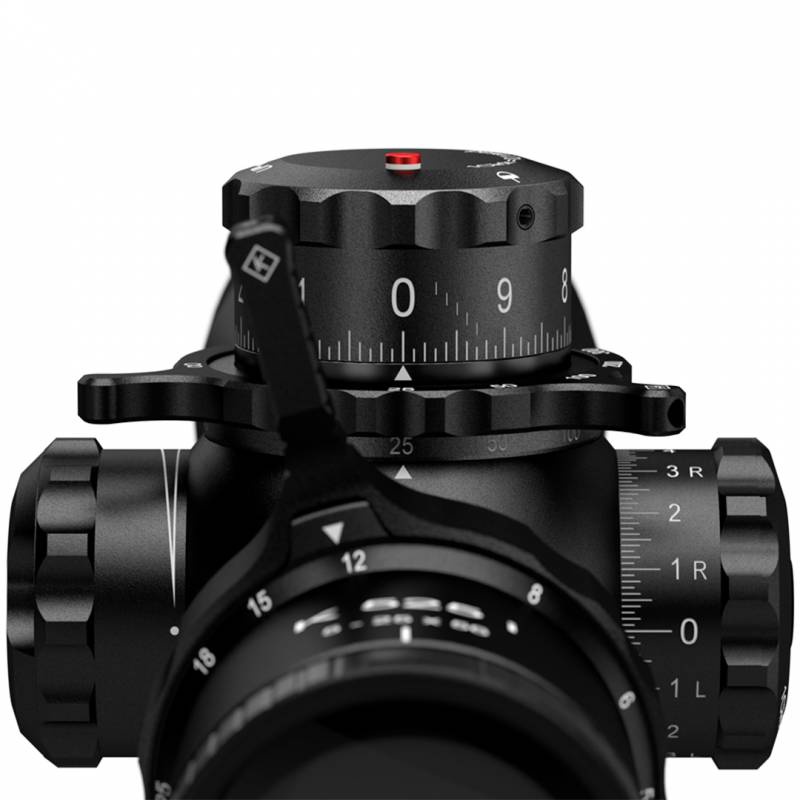

  • Special equipment: extralong throw lever & parallax spinner for quick adjustments
  • Precise illuminated SKMR / SKMR4 reticle in 1st focal plane



Magnification: 5 – 25
Objective lens diameter: 56 mm
Exit pupil: 9.5 – 2.3 mm
Eye relief: 95 mm
Field of view: 7.7 – 1.6 m/100 m
Diopter compensation: +2 / -3.5 dpt
Twilight factor (DIN 58388): 16.7 – 37.4
Impact correction per click: .1 MRAD
Adjustment range (E/W): 2.9 / 1.3 m/100 m
Parallax adjustment: 20 m till ∞
Tube diameter: 34 mm
Length: 377 mm
Weight: 995 incl. Parallax Spinner, Throw Lever g
Focal plane: 1
Illuminated: Yes
Warranty: 10 years (2 years electronic)

VIEW DATA SHEET

Additional information

Windage Turret

Left Hand Side, Right Hand Side
